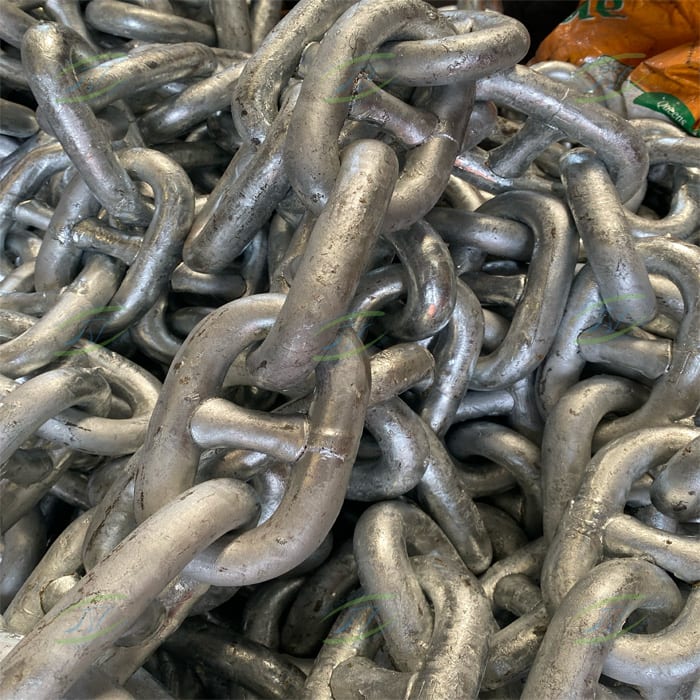

Chain for Marine Fender

Chain for marine fenders complies with the standard: JIS G 3105 or equivalent.
Hot-dip galvanized chain according to BS EN ISO 1461.
Classification certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, etc.

Anchor Chain for Fender System — Chain for Marine Fender

Unit: MS

Chain Diameter	Proof load			Breaking load			Approx. mass (27.5m)
Chain Diameter	Grade1	Grade2	Grade3	Grade1	Grade2	Grade3	Approx. mass (27.5m)
mm	KN	KN	KN	KN	KN	KN	Kg
6	6.62	9.30		13.32	18.60		21.45
7	9.02	12.60		18.13	25.20		29.15
8	11.78	18.50		23.68	33.00		38.23
9	14.90	20.90		29.97	41.80		48 40
10	18.40	25.80		37.00	51.60		59.68
11	22.6	31.20		44.70	62.40		72.33
12.5	28.75	41 20		57.81	82.60		93.23
13	31.10	44.10		62.53	88.20		100.93
14	34.78	51.00		69.93	101.90		116.88
15	41.40	58.30		83.25	116.60		134.20
16	47.10	66.20	92.42	94.72	132.30	184.87	152.90
17.5	56.35	78.89	110.55	113.31	157.78	221.10	182.88
19	6642	93.60	130.32	133.57	187.20	260.64	215.33
20.5	77.33	108.64	151.70	155.49	217.27	303.42	250.80
22	89.06	125.40	174.70	179.08	250.90	349.40	288.75
24	105.98	149.90	207.90	213.25	298.90	415.80	343.75
26	124.38	175.40	244.00	250.12	350.80	488.00	403 43
28	144.26	203.80	283.00	290.08	406.70	566.00	467.50
30	165.60	234.20	324.90	333.00	467.50	649.80	536.25
32	188.42	265.60	369.60	378.88	531.20	739.30	611.05
34	212.70	299.90	417.30	427.72	599.80	834.60	689.70
36	23846	336.10	467.80	479.52	672.30	935.70	733.30
38	265.70	374.40	521.30	534.28	748.70	1012.50	861.58
40	294.40	414.50	577.60	592.00	829.10	1155.20	954.80
42	324.58	457.70	636.80	652.68	91530	1272.60	1052.70
44	356.22	502 70	698.90	716.32	999.60	1397.80	1155.28
46	389.34	548.80	763.90	782.92	1097.60	1527.80	1262.80
48	423.94	597.80	831.70	852.48	1195.60	1663.50	1375.00
50	460.00	648.80	902.50	926.09	1293.60	1805.00	1479.88

Unit: US

Chain Diameter	Grade2		Grade3		Approx.mass Pounds Perl 15 Fathoms	Chain Diameter	Grade2		Grade3		Approx.mass Pounds Perl 5 Pathoms
	Proof load	Breaking load	Proof load	Breaking load			Proof load	Breaking load	Proof load	Breaking load
	C=1422	C=1991	C=1991	C=2844			C=1422	C=1991	C=1991	C=2844
in	Lbf	Lbf	Lbf	Lbf	Lb	in	Lbf	Lbf	Lbf	Lbf	Lb
9/16	19300	27000	27000	38600	297	2 1/2	346000	484000	484000	692000	5402
5/8	23700	33200	33200	47500	379	2 9/16	363000	507000	507000	726000	5679
11/16	28600	40100	40100	57300	420	2 5/8	379000	530000	530000	758000	5966
3/4	34000	47600	47600	68000	492	2 11/16	396000	554000	554000	792000	6263
13/16	39800	55700	55700	79500	584	2 3/4	413000	578000	578000	826000	6570
7/8	46000	64400	64400	91800	676	213/16	431000	603000	603000	861000	6878
15/16	52600	73700	73700	105000	779	2 7/8	449000	628000	628000	897000	7196
1	59700	83600	83600	119500	881	2 15/16	467000	654000	654000	934000	7513
1 1/16	67200	94100	94100	135000	994	3	485000	679000	679000	970000	7841
1 1/8	75000	105000	105000	150000	1107	31/16	504000	705000	705000	1008000	8180
1 3/16	83400	116500	116500	167000	1251	31/8	523000	732000	732000	1046000	8528
1 1/4	92200	129000	129000	184000	1384	3 3/16	542000	759000	759000	1084000	8877
1 5/16	101500	142000	142000	203000	1527	31/4	562000	787000	787000	1124000	9235
1 3/8	111000	155000	155000	222000	1671	3 5/16	582000	814000	814000	1163000	9594
1 7/16	120500	169000	169000	241000	1825	3 3/8	602000	843000	843000	1204000	9973
1 1/2	131000	183500	183500	262000	1989	3 7/16	622000	871000	871000	1244000	10353
1 9/16	142000	198500	198500	284000	2142	31/2	643000	900000	900000	1285000	10763
1 5/8	153000	214000	214000	306000	2296	3 9/16	664000	929000	929000	1327000	11173
1 11/16	166500	229000	229000	327000	2470	3 5/8	685000	958000	958000	1369000	11583
1 3/4	176000	247000	247000	352000	2655	3 3/4	728000	1019000	1019000	1455000	12300
113/16	188500	264000	264000	377000	2860	3 7/8	772000	1080000	1080000	1543000	13223
1 7/8	201000	281000	281000	402000	3055	315/16	794000	1111000	1111000	1587000	13633
115/16	214000	299000	299000	427000	3260	4	816000	1143000	1143000	1632000	14043
2	227000	318000	318000	454000	3444	41/8	862000	1207000	1207000	1724000	14965
2 1/16	241000	337000	337000	482000	3659	41/4	908000	1272000	1272000	1817000	15785
2 1/8	255000	357000	357000	510000	3885	4 3/8	956000	1338000	1338000	1911000	16605
2 3/16	269000	377000	377000	538000	4121 ”	41/2	1004000	1405000	1405000	2008000	17528
2 1/4	284000	396000	396000	570000	4356	4 5/8	105^000	1474000	1474000	2105000	18450
2 5/16	299000	418000	418000	598000	4602	4 3/4	1102000	1543000	1543000	2204000	19373
2 3/8	314000	440000	440000	628000	4848	4 7/8	1153000	1613000	1613000	2305000	20398
2 7/16	330000	462000 .	462000	660000	5084	5	1203000	1685000	1685000	2407000	21423

Note: Test load (in lbf) = c × d² (44 – 2.032d)
Conversion table: 1 inch = 25.4 mm | 1 lb = 0.4536 kg | 1 fathom = 1.8288 m

Stud Link Chain

Chain Diameter	Stud Link Chain Kg/27.5m	Common Link	Enlarged Link	End Link	Kenter Shackle	D Type Joining Shackle	End Shackle	Swivel	Anchor Swivel Shackle Type A	Anchor Swivel Shackle Type B
14	128	0.26	0.39	0.32	0.6	0.67	1.5	1.05	9	2.5
16	150	0.35	0.49	0.57	0.65	0.95	1.52	1.34	14	3.2
17.5	197	050	0.66	0.67	0.88	1.34	2.05	1.73	14	4.9
19	236	0.66	0.85	1.06	1.13	1.84	2.41	2.17	17	6.3
20.5	268	0.80	1.02	1.06	1.36	2.2	3.25	2.2	17	7.9
22	324	1.04	1.30	1.58	1.64	2.66	3.95	3.5	22	9.8
24	370	1.30	1.65	1.84	2.13	3.4	5.12	4.53	22	12.8
26	431	1.64	2.03	2.74	2.58	4.5	6.7	5.79	43	16.2
28	496	2.04	2.48	3.23	3.3	519	8.1	7.25	43	20.3
30	563	2.48	3.58	3.74	4.15	6.32	10	9	98	24.9
32	635	2.98	4.45	4.74	5.06	8.24	11.77	10.03	98	30.2
34	712	3.54	5.21	5.54	6.01	9.56	14.2	12.75	118	36.3
36	800	4.23	5.99	6.95	6.89	11.31	16.55	14.96		43.1
38	888	4.96	6.15	7.66	8.4	13.45	19.55	17.44		51
40	1033	6.04	8.01	8.2	9.63	15.5	22.8	20.25	128	59
42	1084	6.65	9.04	9.92	11	18.1	26	25.4	128	68
44	1197	7.73	10.25	11.42	12.45	20.25	29.71	26.6	160	79
46	1310	8.80	11.54	13.92	14.1	23.33	34.3	30.67		90
48	1438	10.06	14.44	15.67	167	27.5	38.0	35.0		102
50	1546	11.28	16.06	17.7	19.0	31.6	45.2	40.5	289	115
52	1661	12.68	17.85	18.97	203	34.0	50.9	49.5	289	130
54	1791	14.10	19.60	20.84	23.7	38.5	53.8	50.5	300	145
56	1926	15.66	21.69	23.55	26.7	46.0	63.0	55.0	300	162
58	2086	17.83	24.0	25.95	27.2	46.8	70.0	64.6	330	180
60	2249	19.90	26.0	28.48	27.7	51.0	775	71.3		199
62	2361	21.66	28.63	30.81	35	59.2	86.3	77.7		220
64	2516	23.51	31.13	327	38.4	62.7	96.3	83.3	458	242
66	2676	25.98	35.0	38.4	42.3	75	99.6	88.7		265
68	2885	28.60^	39.72	39.5	46.0	76.7	102.6	100.0		290
70	3010	31.00	43.33	43.8	48.7	90	126.2	107.8	522	317
73	3274	35.20	48.30	49	53.0	95	138.2	125.6	522	359
76	3548	39.90	53.6	57.1	60.7	107	146	143.8	522	405
78	3737	43.00	59.6	62.3	65.5	116	164	154	815	438
81	4030	48.60	66.0	67.4	75	130	190	188	815	491
84	4334	53.50	69.0	74.4	90	136	212	198	1007	547
87	4650	58.90	81.1	84.6	96	160	237	215	1007	608
90	4976	66.35	88.0	91	108	176	245	238	1300	673
92	5199	71.22	97.5	100	114	196	257	252		781
95	5544	78.08	101	109	128	215	300	269		833
97	5780	83.77	107	117	133	222	335	301	1610	842
100	6143	89.03	120	127	146	252	353	330		923
102	6398	95.50	130	134	158	267	378	344		980
105	6773	104.20	139	150	160	294	385	387	1827	1069
107	7033	111.63	148	160	180	305	420	428	1827	1131
111	7569	124.08	161	171	198	325	463	448	2022	1262
114	7983	135.31	168	190	204	345	485	460		1368
117	8409	147.53	177	209	225	365	528	475		1478
120	8863	155.49	204	229	250	400	570	547	2336	1595
122	9143	166.24	218	e 234	263	425	602	649	2336	1676
124	9399	170.90	228	246	290	465	632	680	2636	1760
127	9830	185.47	244	269	312	499	679	729	2636	1891
130	10300	194.34	264	293	333	536	729	784		2028
132	10620	208.24	270	298	350	561	762	820	2960	2123
137	11439	233.45	298	329	392	627	852	912	3309	2374
142	12289	261.47	333	383	436	698	949	1012	3685	2643
147	13170	297.67	377	419	485	774	1053	1124	4088	2932
152	14081	312.91	416	458	537	856	1164	1238	4520	3242
157	15023	349.37	450	499	591	943	1283	1360	4980	3572
162	15995	390.12	496	542	651	1036	1410	1490	5470	3925

Principle of Operation & Functions

Functions of Chain for Marine Fender

Keep the fender in position: The chain ensures that the marine fender stays fixed in place, even under heavy waves or strong winds.
Absorb impact force: The chain helps reduce tension and impact forces when a vessel contacts the fender, protecting it from damage.
Ensure safety: Prevents the fender from drifting away or detaching during berthing operations or in harsh weather conditions.

Installation Procedure of Fender Chain

Inspect chain and shackles:
Ensure no chain links are worn, broken, or heavily corroded.
Shackles must be properly tightened without cracks.
Connect chain to marine fender:
Use shackles to connect one end of the chain to the lifting eye of the fender.
Make sure the shackle is tightened correctly and securely.
Connect chain to quay or mooring buoy:
The other end of the chain is attached to the quay or buoy via shackles or anchoring devices.
Chain tensioners can be used to adjust length and tension properly.
Check tension and test:
After installation, check chain tension to ensure the fender is in the correct position.
Test by pulling or lightly pushing the fender to verify stability.
