HA Fender (Arch Fender)
HA Fender (Arch Fender) is a high-performance marine fender with a hollow structure in the middle, providing excellent energy absorption and resilience. It is widely used in ports, terminals, and shipyards. Manufactured according to PIANC, ISO, DNV standards, with a service life of 5–15 years and warranty from 3–5 years.
Key Features of HA Fender
- High energy absorption with low reaction force.
- Durable design, suitable for harsh marine environments.
- Easy installation and low maintenance cost.
- Service life from 5–15 years, warranty from 3–5 years.
Standard Sizes of HA Fender
| Model | Dimensions (mm) | Reaction Force (kN) | Energy Absorption (kN·m) | Anchor Bolts |
|---|---|---|---|---|
| HA-150H | 150 × 100 × 600 | 64 | 3.5 | M24 × 4 |
| HA-200H | 200 × 150 × 1000 | 137 | 8.6 | M30 × 6 |
| HA-250H | 250 × 175 × 1500 | 245 | 18.9 | M36 × 8 |
| HA-300H | 300 × 200 × 2000 | 382 | 37.9 | M36 × 10 |
| HA-400H | 400 × 250 × 2000 | 585 | 62.7 | M42 × 12 |
| HA-500H | 500 × 300 × 2500 | 911 | 1163.5 | M48 × 14 |
| HA-600H | 600 × 350 × 3000 | 1337 | 1896.5 | M56 × 16 |

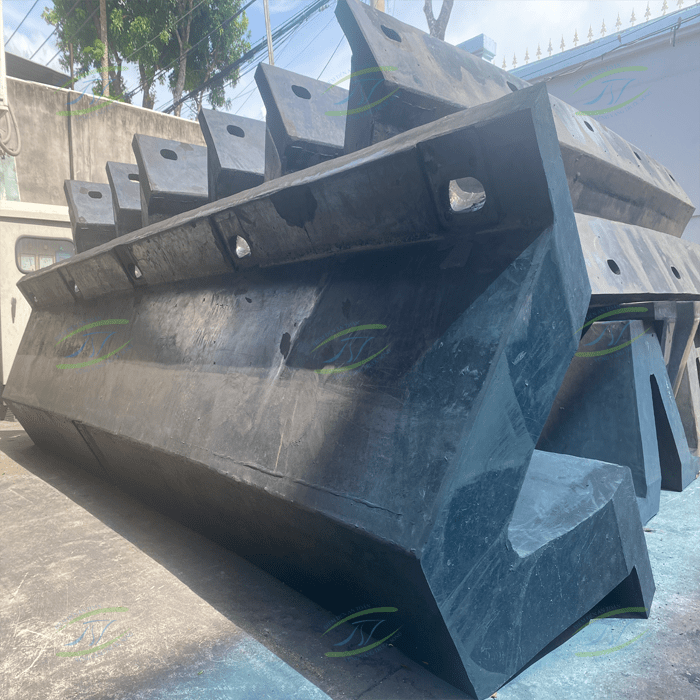

Product Image
Applications of HA Fender
- Installed at seaports, container terminals, oil and gas terminals.
- Used in shipyards and anchorage areas.
- Protects vessels and quay structures from collision damage.
