The Cone Fender is a modern marine fender designed with a conical shape to maximize energy absorption and minimize reaction force on both vessels and quay structures. With high durability and strong load-bearing capacity, Cone Fenders provide a safe and efficient berthing solution for ports with large tidal variations and heavy-duty applications.

Cone Fenders can achieve up to 52.5% deflection and are engineered to comply with international standards such as PIANC 2002, ensuring safety, stability, and long service life. Heights range from 300 mm to 3,000 mm, making them suitable for various vessel types and port operations such as cargo terminals, container berths, and oil & gas jetties.

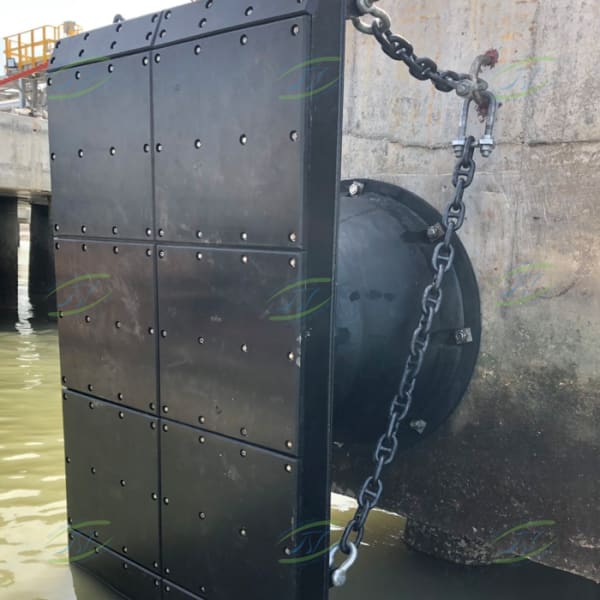

For enhanced performance, Cone Fenders are equipped with anchor chains, U-bolts, and steel frontal panels, ensuring stability and reliability. When combined with other fender systems, Cone Fenders deliver maximum protection for vessels of different sizes.

Fender Accessories

• Anchor chains

• U-bolts

• Frontal panels (optional)

Technical Specifications – Cone Fender Dimensions

Performance

Installation Instructions

Site preparation and required tools:

• Identify the in

• Ensure the concrete surface is clean and free from obstructions.

• Prepare necessary tools such as anchor bolts, chemical adhesives or Sika, and lifting equipment.

Anchor bolt installation:

• If anchor bolts are installed during concrete casting, ensure they are positioned correctly and securely fixed.

• For post-installed anchor bolts, use chemical

Fender inst

• Position the fender correctly, ensuring all bolt holes align with the installed anchor bolts.

• Use cranes or support vessels to lift the fender into place, especially for large and heavy fenders.

• Use specialized tools to firmly tighten all bolts connecting the fender to the quay structure.

• Ensure the fender is securely fixed and stable.

Inspection and finishing:

• Check the entire installation system, making sure all bolts are tightened with the required torque.

• Verify that the fender position complies with design drawings and maritime safety standards.

Regular inspection and maintenance:

• After installation, the fender system should be periodically inspected to ensure stable operation and long service life.

Note: Installation must be carried out by an experienced technical team to ensure safety and efficiency of the port system.

Cone Fender Quality

The Cone Fender is an advanced development of the traditional “Cell Fender,” designed with a conical shape to optimize energy absorption performance and reduce reaction force on quay and vessel structures. Known for its high durability and heavy load capacity, the Cone Fender provides a safe and efficient solution for ports with large tidal variations or heavy-duty berthing requirements.

Cone Fenders can achieve up to 52.5% deflection and are designed to comply with PIANC 2002 international standards, ensuring safety and durability for long-term use. Fender heights range from 300 mm to 2,000 mm, suitable for various vessel types and applications such as cargo ports, container terminals, and oil & gas jetties.

The system is designed with safety accessories such as anchor chains and U-bolts, enhancing stability and reliability of port structures. When combined with other fender types such as cylindrical or arch fenders, Cone Fenders provide greater protection and adaptability for a wide range of vessels.

Reference Projects

• K662 Petroleum Depot – Military Petroleum Storage: NT–CSS 1000H, NT–CSS 1250H

• Military Port Renovation – 7th Military Region: NT–CSS 800H

• Military Port – 7th Military Region: NT–CSS 1000H

• Bac Van Phong Port: NT–CSS 1150H

• Xuan Thanh Cement – Khanh Hoa: NT–CSS 800H

• Song Hau 1 Thermal Power Plant – Package BS04: NT–CSS 1000H, NT–CSS 1250H

• A3 Wharf & Expansion – Go Dau Port, Dong Nai: NT–CSS 1000H

• Xuan Thanh Cement – Cam Ranh: NT–CSS 800H

• Thang Long Cement – Quang Ninh: NT–CSS 1150H

• Go Dau B Port – Dong Nai: NT–CSS 1000H

• Vissai Port – Nghe An: NT–CSS 1150H

• Hoa Phat Port: NT–CSS 1250H

• Petrolimex Oil Port No.8 – Bac Van Phong: NT–CSS 1600H

• Vinh Tan 2 Power Plant Port: NT–CSS 1150H

• Chu Lai – Truong Hai Port: NT–CSS 1450H
