Main Ladder

Auxiliary Ladder

Rubber Ladder

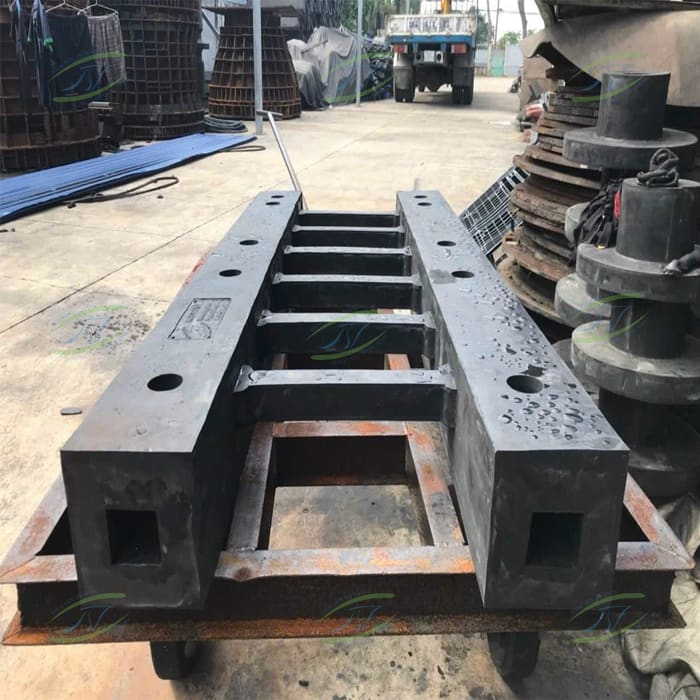

Rubber ladders in ports are essential equipment that support port operations, especially for maintenance activities and safe boarding/disembarking when vessels dock. The ladder is designed to provide convenience and safety for port operations.

The rubber ladder consists of two parts: the main body fixed to the quay wall and the auxiliary body, which moves flexibly, making access easier and more convenient.

Safety is ensured by anchor bolts embedded deep into concrete and securely combined with reinforced steel, increasing the structural stability and safety of quays and ports.

When combined with marine fenders such as cone fenders, cell fenders, or Lambda fenders, the system enhances berthing capacity and ensures safety, suitable for various types of vessels.

Fender accessories – Anchor bolts.

Technical Specifications Rubber Ladder Details

1. Rubber Ladder Dimensions



   Rubber Ladder Type	Ladder Length [mm]	Estimated Weight[kg]	No. of Steps	Anchor Bolts	Bolt Spacing (q) [mm]
   RL 200	900	93	3	2×2	300 + 300 + 300
   RL 200	1,200	125	4	3×2	300 + 300 + 300 + 300
   RL 200	1,500	157	5	3×2	300 + 600 + 300 + 300
   RL 200	1,800	188	6	4×2	300 + 300 + 600 + 300 + 300
   RL 200	2,100	221	7	4×2	300 + 600 + 300 + 600 + 300
   RL 200	2,400	252	8	5×2	300 + 600 + 300 + 300 + 600 + 300
   RL 200	2,700	284	9	5×2	300 + 600 + 600 + 300 + 600 + 300
   RL 200	3,000	316	10	6×2	300 + 600 + 300 + 600 + 300 + 600 + 300

2. Installation

   Installing rubber ladders is simple and convenient. Anchor bolts (used to secure the main ladder to the quay surface) can be pre-embedded in concrete during construction or installed afterward using chemical bolts or Sika. Positioning bolts is usually supported by templates to ensure accuracy and compliance with port safety standards.

   Rubber ladders can be easily installed with the support of cranes, boats, or other basic construction tools.

   Rubber Ladder Quality

   The quality of rubber ladders is guaranteed according to international standards such as PIANC, BV, or certified by reputable third-party inspection units such as TT3 (Quartest 3) Vietnam, SGS, etc. With a lifespan of 5–10 years (depending on port operation conditions), the product consistently meets energy absorption and compression resistance criteria.

   The product comes with a warranty of 3 to 5 years, depending on specific port design requirements.

Completed Projects

Hyosung Chemical Port : NT – LD 200
Sông Hậu 1 Thermal Power Plant – Package BS04 : NT – LD 200
Cà Ná Port : NT – LD 200
Vũng Áng 2 Port : NT – LD 200
