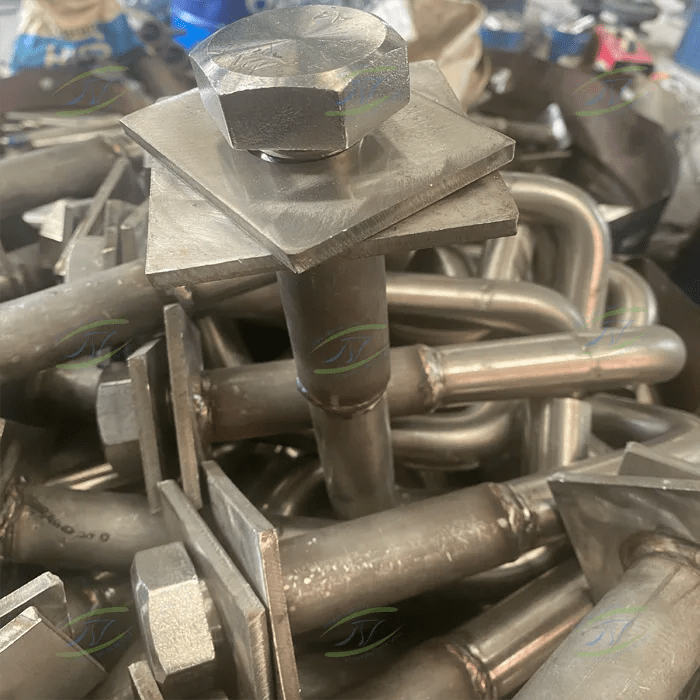

Accessories – J-Type Anchor Bolt for Marine Fender
Marine fenders are connected to the quay by pre-embedded anchor bolts in concrete or by post-installed chemical anchor bolts.
 |
| M [mm] | A [mm] | B [mm] | S [mm] | U [mm] | T [mm] | ⌀W [mm] | ⌀P [mm] | E [mm] | F [mm] | K [mm] | L [mm] | R [mm] |
| 18 | 51 | 45 | 39 | 54 | 6 | 20 | 21 | 47 | 6 | 67 | 158 | 56 |
| 22 | 62 | 55 | 47 | 66 | 6 | 24 | 25 | 58 | 6 | 81 | 194 | 69 |
| 24 | 68 | 60 | 52 | 72 | 6 | 26 | 28 | 63 | 6 | 89 | 211 | 75 |
| 30 | 85 | 75 | 65 | 90 | 6 | 33 | 35 | 79 | 6 | 111 | 264 | 94 |
| 36 | 102 | 90 | 77 | 108 | 6 | 40 | 41 | 95 | 6 | 133 | 317 | 112 |
| 42 | 119 | 105 | 90 | 126 | 9 | 46 | 48 | 110 | 6 | 155 | 370 | 131 |
| 48 | 136 | 120 | 103 | 144 | 9 | 53 | 55 | 126 | 6 | 178 | 422 | 150 |
| 64 | 182 | 160 | 138 | 192 | 9 | 70 | 74 | 168 | 6 | 237 | 563 | 200 |
-
Material Details
Material: SUS304 Stainless Steel
Chemical Composition:Mechanical Properties:
| Chemical composition of SUS304 | |||||||||||||||||||||||
| C | Si | Mn | P | S | Ni | Cr | |||||||||||||||||
| max | 0.08 | max | 1 | max | 2 | max | 0.045 | max | 0.03 | 8 – 10.5 | 18 – 20 | ||||||||||||
Mechanical Properties:
| Mechanical properties of SUS304 | |||||
| Assortment | Yield point / Proof stress | Tensile strength | Elongation | Reduction of area | Charpy impact strength |
| Plate/Sheet Hot-rolled | 205 N/mm² | 520 N/mm² | 40% | ||
A. JIS S45C Steel Properties
Chemical Composition
| Standard | Grade | C | Mn | P | S | Si |
| JIS G4051 | S45C | 0.42-0.48 | 0.60-0.90 | 0.03 | 0.035 | 0.15-0.35 |
Mechanical Properties of S45C
- Density (kg/m³): 7700-8030
- Young’s Modulus (GPa): 190-210
- Tensile Strength (MPa): 569 (Standard), 686 (Quenched & Tempered)
- Yield Strength (MPa): 343 (Standard), 490 (Quenched & Tempered)
- Poisson’s Ratio: 0.27-0.30
- Brinell Hardness (HB): 160-220 (Annealed)
B. SCM440 (AISI 4140) Steel Properties
Common 4140 Steel Specifications
| Country | USA | Germany | UK | Japan | China | Australia |
| Standard | ASTM A29 | DIN 17200 | BS 970 | JIS G4105 | GB/T 3077 | AS 1444 |
| Grade | 4140 | 1.7225 / 42CrMo4 | 42CrMo4 | SCM440 | 42CrMo | 4140 |
Chemical Composition of 4140 / SCM440 Steel
| Standard | Grade | C | Mn | P | S | Si | Cr | Mo |
| ASTM A29 | 4140 | 0.38-0.43 | 0.75-1.00 | 0.035 | 0.040 | 0.15-0.35 | 0.8-1.10 | 0.15-0.25 |
| EN 10083/EN 10250 | 42CrMo4/1.7225 | 0.38-0.45 | 0.6-0.9 | 0.035 | 0.035 | 0.4 | 0.9-1.2 | 0.15-0.30 |
| JIS G4105 | SCM440 | 0.38-0.43 | 0.60-0.85 | 0.03 | 0.03 | 0.15-0.35 | 0.9-1.2 | 0.15-0.30 |
Mechanical Properties of AISI 4140 / SCM440
| Property | Metric | Imperial |
| Tensile Strength | 655 MPa | 95,000 psi |
| Yield Strength | 415 MPa | 60,200 psi |
| Bulk Modulus | 140 GPa | 20,300 ksi |
| Shear Modulus | 80 GPa | 11,600 ksi |
| Elastic Modulus | 190-210 GPa | 27,557-30,458 ksi |
| Poisson’s Ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.7% | 25.7% |
| Hardness, Brinell | 197 | 197 |
| Hardness, Rockwell B | 92 | 92 |
| Hardness, Vickers | 207 | 207 |
| Machinability | 65 | 65 |
-
Installation
- Easy installation.
- The J-Type Anchor Bolts (bolts connecting fender anchor plates to the quay surface) can be pre-embedded during concrete pouring or post-installed using chemical anchors such as epoxy or Sika.
- Positioning of bolts is supported by templates to ensure accuracy and compliance with port technical safety standards.
- Anchor plates are easily installed with cranes or support vessels, using standard construction tools.
Quality of Anchor Bolt Accessories
- Anchor bolt accessories are certified according to international standards: PIANC, BV, or third-party organizations such as TT3 (Vietnam), SGS, etc.
- With a service life of up to 50–100 years (depending on port operating conditions), the product guarantees energy absorption and reaction force performance over time.
- Warranty: 3–5 years (depending on port design requirements).
Completed Projects
- K662 Oil Depot – Military Petroleum General Warehouse: NT – CSS 1000H, NT – CSS 1250H
- Renovation of Military Port Zone 7: NT – CSS 800H
- Military Port Zone 7: NT – CSS 1000H
- Bac Van Phong Port: NT – CSS 1150H
- Xuan Thanh Cement – Khanh Hoa: NT – CSS 800H
- Song Hau 1 Thermal Power Plant – Package BS04: NT – CSS 1000H, NT – CSS 1250H
- A3 Jetty & A3 Extension – Go Dau Port, Dong Nai: NT – CSS 1000H
- Xuan Thanh Cement Plant – Cam Ranh: NT – CSS 800H
- Thang Long Cement – Quang Ninh: NT – CSS 1150H
- Go Dau B Port – Dong Nai: NT – CSS 1000H
- Vissai Port – Nghe An: NT – CSS 1150H
- Hoa Phat Port: NT – CSS 1250H
- Petrolimex Oil Terminal No.8 – Bac Van Phong: NT – CSS 1600H
- Vinh Tan 2 Port: NT – CSS 1150H
- Chu Lai – Truong Hai Port: NT – CSS 1450H
