U Bolt for Chain Anchoring & Concrete Installation

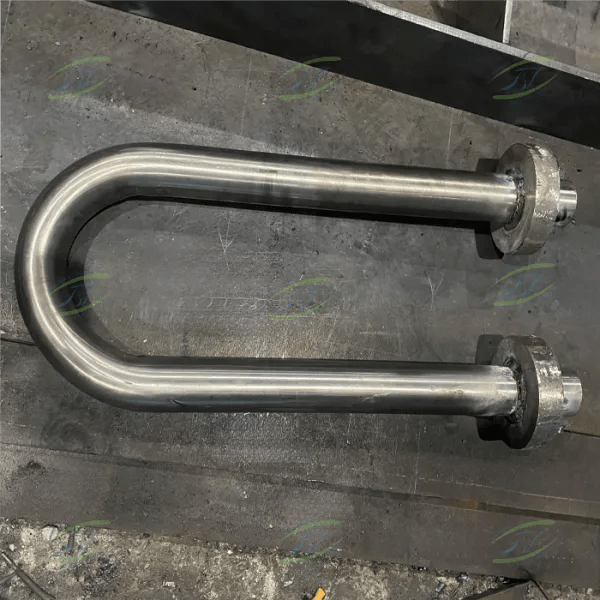

U Bolt – also known as U Anchor Bolt or Chain Hanging Bolt – is a specialized fastener designed to be embedded into concrete before installing fenders.
It offers excellent strength, durability, and resistance against corrosion in harsh marine environments.
Materials
- Japanese Standard (JIS G3101): SS400, S45C, CT45
- Stainless Steel: SS201, SUS304, SS316, SS316L
- Hot-dip galvanized steel for marine-grade durability
Technical Specifications
| Diameter of Chain [mm] | L [mm] | L1 [mm] | L2 [mm] | ØD [mm] | e [mm] | S [mm] | t [mm] | R [mm] | W [mm] | ØP [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 520 | 390 | 94 | 36 | 24 | 360 | 16 | 70 | 176 | 70 |
| 30 | 640 | 485 | 113 | 42 | 28 | 445 | 19 | 85 | 212 | 80 |
| 34 | 720 | 550 | 122 | 48 | 27 | 510 | 22 | 95 | 238 | 100 |
| 38 | 820 | 630 | 135 | 55 | 25 | 585 | 25 | 110 | 275 | 110 |
| 42 | 870 | 670 | 140 | 60 | 20 | 620 | 28 | 120 | 300 | 120 |
| 46 | 940 | 720 | 155 | 65 | 25 | 670 | 28 | 130 | 325 | 130 |
| 50 | 1000 | 760 | 170 | 70 | 30 | 700 | 32 | 140 | 170 | 140 |
| 52 | 1090 | 820 | 195 | 75 | 45 | 760 | 32 | 150 | 187 | 150 |
| 54 | 1150 | 870 | 200 | 80 | 40 | 800 | 36 | 160 | 400 | 160 |
Installation Guide for U Bolts in Concrete
- Positioning: Identify exact positions from design drawings, ensuring proper spacing to evenly distribute loads.
- Drilling Holes: Drill holes in concrete to match U Bolt size. Clean thoroughly with brush and compressed air.
- Fixing: Inject epoxy or chemical anchor adhesive, then insert U Bolt and align properly. Hold until adhesive sets.
- Concrete Embedding: Pour high-grade concrete (≥ M300), compact with vibrator, and smooth the surface.
- Curing & Testing: Cure for 7–28 days, then test with designed loads before connecting chains or cables.
Quality Standards
Our U Bolts and mooring accessories comply with international certifications such as PIANC, BV, SGS, and Quartest 3 (Vietnam).
With a lifespan of 50–100 years depending on port conditions, all products meet strict performance requirements for energy absorption and reaction force.
Warranty: 3–5 years depending on project specifications.
Completed Projects
- Petroleum Terminal K662 – Military Fuel Depot: NT – CSS 1000H, NT – CSS 1250H
- Military Port Renovation – Zone 7: NT – CSS 800H
- Bac Van Phong Port: NT – CSS 1150H
- Song Hau 1 Thermal Power Plant: NT – CSS 1000H, NT – CSS 1250H
- Go Dau Port A3 & Expansion – Dong Nai: NT – CSS 1000H
- Hoa Phat Port: NT – CSS 1250H
- … and many more domestic & international projects
Other Marine Fender Accessories
- Lambda Fender
- SPC Fender
- Cylindrical Fender
- PPI Fender
- Mooring Bollards
- Rubber Ladders
- Accessories
