Cylindrical Mooring Bollard

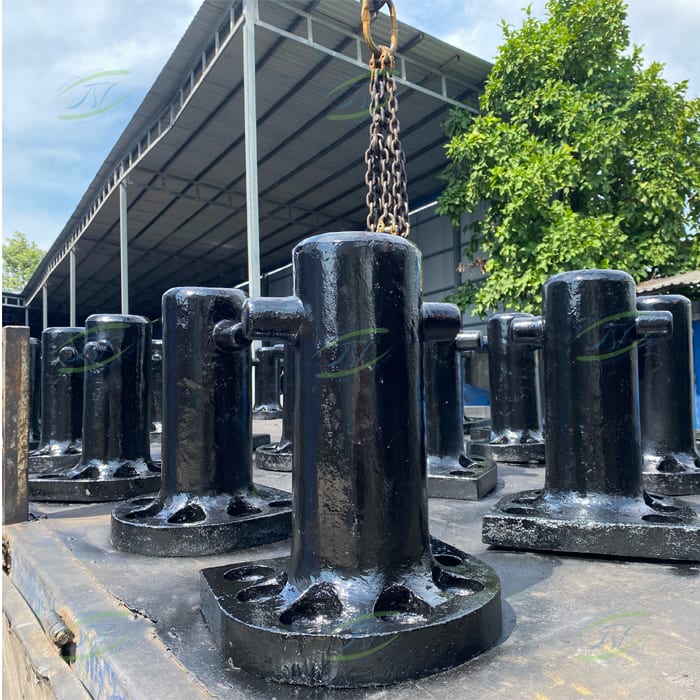

What is a Cylindrical Mooring Bollard?
Cylindrical Mooring Bollard (also called Round Mooring Bollard) is a marine device used for mooring ships safely at berths, piers, and ports. Vessels are secured by tying ropes around the bollard to hold the ship in place.
Cylindrical Mooring Bollards come in different shapes and sizes depending on the port design. They are usually manufactured and custom-designed according to client requirements. Typical materials include Ductile Cast Iron, Gray Cast Iron, or Cast Steel following standards such as SC450, SC410, FC300, FC350… The height of the bollard can range from 200 mm to 2000 mm, with a maximum weight of up to 5 tons per bollard.
Anchor bolts for bollards are designed per specification, available in cylindrical, conical, or square shapes. They are deeply embedded into reinforced concrete to ensure maximum safety and load resistance for port structures.
For improved performance, bollards are often combined with fenders such as Cone Fender, Cell Fender, or Lambda Fender to increase ship-berthing capacity and ensure safety for various types of vessels.
Cylindrical Mooring Bollard Dimensions
Cylindrical Mooring Bollards are usually designed according to port requirements. Below are some common sizes from Nguyen Tai for customer reference:
| Type | Capacity | Anchors |
| NT – FT 10 | 10 Tons | 4 x M24 |
| NT – FT 15 | 15 Tons | 4 x M24 |
| NT – FT 20 | 20 Tons | 5 x M24 |
| NT – FT 30 | 30 Tons | 5 x M30 |
| NT – FT 50 | 50 Tons | 5 x M36 |
| NT – FT 75 | 75 Tons | 6 x M42 |
| NT – FT 100 | 100 Tons | 7 x M42 |
| NT – FT 125 | 125 Tons | 7 x M48 |
| NT – FT 150 | 150 Tons | 7 x M48 |
| NT – FT 200 | 200 Tons | 8 x M56 |
| NT – FT 250 | 250 Tons | 8 x M56 |
| NT – FT 300 | 300 Tons | 8 x M64 |
Material Specifications
SC 450
FC 350
Installation
- Easy to install.
- Anchor bolts are embedded during concrete pouring or installed later using chemical bolts or epoxy systems (e.g., Sika).
- Positioning frames are used to ensure precise alignment and compliance with technical safety standards.
- Bollards can be installed with basic equipment, cranes, or supporting vessels.
Cylindrical Mooring Bollard Quality
- Quality meets international standards such as PIANC, BV, or third-party verification agencies like TT3 (Quartest 3, Vietnam), SGS.
- Lifespan up to 50–100 years depending on operating conditions.
- Performance meets energy absorption and reaction force requirements over time.
- Warranty period: 3–5 years (depending on project requirements).
Common Types of Mooring Bollards
Cylindrical Mooring Bollard Price
With over 12 years of experience, Nguyen Tai provides high-quality Cylindrical Mooring Bollards at competitive prices, ensuring customer satisfaction and trust.
Completed Projects
- K662 Oil Depot Port – Military Fuel Depot: NT – CSS 1000H, NT – CSS 1250H
- Defense Port Renovation – Military Zone 7: NT – CSS 800H
- Defense Port – Military Zone 7: NT – CSS 1000H
- Bac Van Phong Port: NT – CSS 1150H
- Xuan Thanh Cement – Khanh Hoa: NT – CSS 800H
- Song Hau 1 Thermal Power Plant – Package BS04: NT – CSS 1000H, NT – CSS 1250H
- A3 Wharf & A3 Expansion – Go Dau Port, Dong Nai: NT – CSS 1000H
- Xuan Thanh Cement Plant – Cam Ranh: NT – CSS 800H
- Thang Long Cement Plant – Quang Ninh: NT – CSS 1150H
- Go Dau B Port – Dong Nai: NT – CSS 1000H
- Vissai Port – Nghe An: NT – CSS 1150H
- Hoa Phat Port: NT – CSS 1250H
- Petrolimex Oil Terminal 8 – Bac Van Phong: NT – CSS 1600H
- Vinh Tan 2 Port: NT – CSS 1150H
- Chu Lai – Truong Hai Port: NT – CSS 1450H
